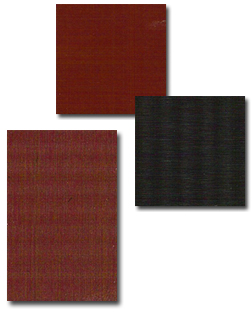

    Phenolic Resin Bonded Paper Laminates (SRBP)

    Phenolic Resin Bonded Paper Laminates are used in the fabrication of insulating components for applications such as switchgear, electric motors and transformers. Paper-based industrial laminates provide the electrical engineer with a choice of different grades of high quality material possessing excellent insulating properties and good mechanical features.
     Paper Base Laminate Products Range and Specifications:

    Bakelite Hylam Grade IS BS NEMA DIN Material Description
    P 100 / P 1001 2036 Grd P 1 2572 Grd P 1 LI 1-1959 Grd-X 7735 Grd-Hp 2061 Paper Base Laminate with good mechanical and machining properties
    P 900 2036 Grd P 1 2572 Grd P 1 LI 1-1989 Grd XP 7735 Grd-Hp 2061 Paper Base Laminate with good flexibility and mechanical properties
    P 1002 - 2572 Grd P 1 - - Paper Phenolic Base with Polar White Melamine face laminate
    P 101 2036 Grd P 1 2572 Grd P 1 LI 1-1989 Grd XP 7735 Grd-Hp 2061 Paper Base Laminate with good punching and heat resistant properties
    P 1007 2036 Grd P 1 2572 Grd P 2 LI 1-1989 Grd XP 7735 Grd-Hp 2061.5 Paper Base Laminate with good mechanical and medium electrical properties
    P 116 2036 Grd P 2 2572 Grd P 2/1 LI 1-1989 Grd XX 7735 Grd-Hp 2061.5 Paper Base Laminate with good mechanical and better electrical properties than P 1
    P 1188 2036 Grd P 2 2572 Grd P 2/1 LI 1-1989 Grd XXP 7735 Grd-Hp 2061.6 Paper Base Laminate with good heat resistant properties
    P 120 2036 Grd P 3 2572 Grd P 3 LI 1-1989 Grd XXX 7735 Grd-Hp 2061.6 Paper Base Laminate with good electrical properties under humid conditions
    P 1191 2036 Grd P 3 2572 Grd P 3/1 LI 1-1989 Grd FR2 7735 Grd-Hp 2063 Paper Base Laminate with fire retardant properties conforming to UL94-VO and good electrical properties under humid conditions
    P 124 2036 Grd P 4 2572 Grd P 4 LI 1-1989 Grd XXXP 7735 Grd-Hp 2062.8 Paper Base Laminate with superior electrical properties under humid conditions
